This tutorial will show you how to build a nice "triangle calculator" that will calculate all the sides and angles in a right triangle - provided that you give it atleast two angles and a side length, or an angle and two side lengths. It does this using sin, cos, tan, the Pythagorean theorem, and the fact that all angles in any triangle add up to 180 degrees.

This will only work for right angle triangles.

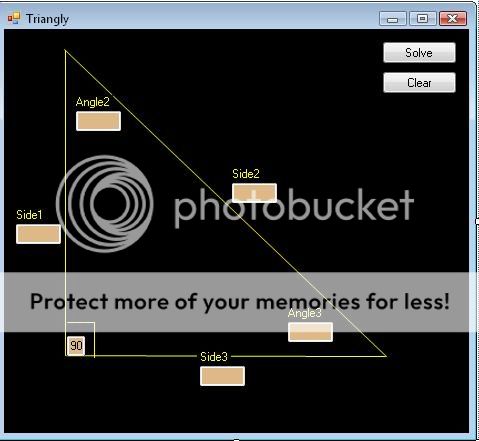

This is what my suggested UI looks like...
Posted Image
You will have to be very careful about getting the names of the variables right because a slight referral to the wrong variable can be disastrous. I suggest that you set your textboxes up this way - so they match up with the code I gave.

Quote

textbox1, angle2
textbox2, angle3
textbox3, side2
textbox5, side1
textbox4, side 3


I'm going to explain my program "bottom-up" because it's easier that way.

Here are the main variables you'll need:
Dim angle1 As Double = 90
	Dim angle2 As Double
	Dim angle3 As Double
	Dim side1 As Double
	Dim side2 As Double
	Dim side3 As Double



This is a function I made to check if there was nothing in the textbox. WARNING: Do not use this method for school assignments, I was being really lazy and didn't think about this - I'm sure there is a MUCH more efficient way of doing this.
Public Function isItNullString(ByVal value) As Boolean
		If value = "" Then
			Return True
		Else
			Return False
		End If
	End Function



This sub feeds the values to the right vars, again, highly inefficient.
 Public Sub feedValues()
		If Not isItNullString(TextBox5.Text) Then
			side1 = TextBox5.Text
		Else
			side1 = 0
		End If

		If Not isItNullString(TextBox3.Text) Then
			side2 = TextBox3.Text
		Else
			side2 = 0
		End If

		If Not isItNullString(TextBox4.Text) Then
			side3 = TextBox4.Text
		Else
			side3 = 0
		End If

		If Not isItNullString(TextBox1.Text) Then
			angle2 = TextBox1.Text
		Else
			angle2 = 0
		End If

		If Not isItNullString(TextBox2.Text) Then
			angle3 = TextBox2.Text
		Else
			angle3 = 0
		End If
	End Sub



You'll need these two functions to convert back and forth from degrees and radians, because the built in things we're going to use only take in and output results in radians.
Public Function degreesToRadians(ByVal degrees As Double) As Double
		Dim radians As Double
		radians = (Math.PI * degrees) / 180
		Return radians
	End Function

	Public Function radiansToDegrees(ByVal radians As Double) As Double
		Dim degrees As Double
		degrees = radians * (180 / PI)
		Return degrees
	End Function



Sometimes, a "NaN" appears in the textbox after certain calculations, that I'm guessing that either means 0 or an error, so we're going to use this sub to get rid of them.

 Public Sub noMoreNaNs()
		For Each blah As Control In Me.Controls
			If blah.Text = "NaN" Then blah.Text = 0
		Next
	End Sub



This sub finds the remaining side length if two already exist, using the Pythagorean theorem. ((a^2) + (b^2) = (c ^ 2)) Oh, and import the System.Math namespace now

	Public Sub pythagoreanTheoremThings()

		If side1 = 0 Then
			side1 = Math.Sqrt((side2 ^ 2) - (side3 ^ 2))
			TextBox5.Text = side1

		ElseIf side2 = 0 Then
			side2 = Math.Sqrt((side1 ^ 2) + (side3 ^ 2))
			TextBox3.Text = side2

		ElseIf side3 = 0 Then
			side3 = Math.Sqrt((side2 ^ 2) - (side1 ^ 2))
			TextBox4.Text = side3
		End If

	End Sub



This code figures out missing angles if two of them already exsist... It does this by using the fact that all of the angles in any triangle add up to 180.
Public Sub angleSums()
		If angle2 = 0 And angle3 <> 0 Then
			angle2 = 180 - angle1 - angle3
			TextBox1.Text = angle2
		End If

		If angle3 = 0 And angle2 <> 0 Then
			angle3 = 180 - angle1 - angle2
			TextBox2.Text = angle3
		End If
	End Sub



Now that the easy part is done, here comes the beast. This will find any missing side lengths providing that we know either angle 3 or 2, and we know atleast one side length.

 Public Sub angle3asWorkingAngle()
		'Cosine
		If angle3 <> 0 And side2 = 0 Then
			side2 = side3 / Cos(degreesToRadians(angle3))
			TextBox3.Text = side2
		End If

		If angle3 <> 0 And side3 = 0 Then
			side3 = side2 * Cos(degreesToRadians(angle3))
			TextBox4.Text = side3
		End If
		'Sine
		If angle3 <> 0 And side1 = 0 Then
			side1 = side2 / Sin(degreesToRadians(angle3))
			TextBox5.Text = side1
		End If

		If angle3 <> 0 And side2 = 0 Then
			side2 = side1 * (Sin(degreesToRadians(angle3)))
			TextBox3.Text = side2
		End If
		'Tangence
		If angle3 <> 0 And side1 = 0 Then
			side1 = side3 / Tan(degreesToRadians(angle3))
			TextBox5.Text = side1
		End If

		If angle3 <> 0 And side3 = 0 Then
			side3 = side1 * (Tan(degreesToRadians(angle3)))
			TextBox4.Text = side3
		End If

	End Sub

	Public Sub angle2asWorkingAngle()

		'Cosine
		If angle2 <> 0 And side2 = 0 Then
			side2 = side1 / Cos(degreesToRadians(angle2))
			TextBox3.Text = side2
		End If

		If angle2 <> 0 And side1 = 0 Then
			side1 = side2 / Cos(degreesToRadians(angle2))
			TextBox5.Text = side1
		End If
		'Sine
		If angle2 <> 0 And side2 = 0 Then
			side2 = side3 / Sin(degreesToRadians(angle2))
			TextBox3.Text = side2
		End If

		If angle2 <> 0 And side3 = 0 Then
			side3 = side2 / Sin(degreesToRadians(angle2))
			TextBox4.Text = side3
		End If
		'Tangence
		If angle2 <> 0 And side3 = 0 Then
			side3 = side1 / Tan(degreesToRadians(angle2))
			TextBox4.Text = side3
		End If

		If angle2 <> 0 And side1 = 0 Then
			side1 = side3 / Tan(degreesToRadians(angle2))
			TextBox5.Text = side1
		End If

	End Sub



If we know two of the sidelengths, my code below will find angles two and three:

Public Sub findAngle3()
		If angle3 = 0 And side3 <> 0 And side2 <> 0 Then
			'Cos
			angle3 = radiansToDegrees(Acos(side3 / side2))
			TextBox2.Text = angle3
		End If

		If angle3 = 0 And side1 <> 0 And side2 <> 0 Then
			'Sin
			angle3 = radiansToDegrees(Asin(side1 / side2))
			TextBox2.Text = angle3
		End If

		If angle3 = 0 And side3 <> 0 And side1 <> 0 Then
			'Tan
			angle3 = radiansToDegrees(Atan(side1 / side3))
			TextBox2.Text = angle3
		End If
	End Sub

	Public Sub findAngle2()

		If angle2 = 0 And side1 <> 0 And side2 <> 0 Then
			'cos
			angle2 = radiansToDegrees(Acos(side1 / side2))
			TextBox1.Text = angle2
		End If

		If angle2 = 0 And side1 <> 0 And side3 <> 0 Then
			'tan
			angle2 = radiansToDegrees(Atan(side3 / side1))
			TextBox1.Text = angle2
		End If

		If angle2 = 0 And side2 <> 0 And side3 <> 0 Then
			'sin
			angle2 = radiansToDegrees(Asin(side3 / side2))
			TextBox1.Text = angle2
		End If

	End Sub



And finally, the code for the calculate button:

 Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
		For aaa As Integer = 0 To 5 'I just repeated this 6 times because I have a lot of processing power... you can do it twice.
			feedValues()

			pythagoreanTheoremThings()
			noMoreNaNs()

			angleSums()
			noMoreNaNs()

			angle3asWorkingAngle()
			noMoreNaNs()

			angle2asWorkingAngle()
			noMoreNaNs()

			findAngle3()
			noMoreNaNs()

			findAngle2()
			noMoreNaNs()

		Next


	End Sub



Enjoy! :D
Feel free to look at the attached project to get an idea of how it is set-up. I'm sure there are some minor mistakes in here :P. I just learnt about sin, cos, and tan yesterday in my math class - so I made this program to help me understand it better, and to help me complete my math homework. I'm sure I'll find some glitches in here when I actually use it for 50+ questions :P
